You can pair the Edge with the Genesys Cloud cloud-based software using a USB flash drive. The USB pairing option is available for the Edge Standard v3 / v2, Edge Mini v2 / v1, and Edge Micro. (These Edges ship with a USB flash drive and an external LCD included in the box. Using the external LCD for the pairing process is optional.)

The USB pairing option is not available for the Genesys Cloud Edge Standard v1.

Encryption certificate options

The pairing process allows you to choose a private Genesys Cloud encryption certificate or a publicly signed encryption certificate. The pairing process also supports China-specific encryption. Use China-specific encryption for locations under the jurisdiction of Chinese law.

Pair an Edge using a USB flash drive

1. Press the power switch on the Edge.
2. Wait up to 10 minutes for the unit to initialize.
3. From a computer on your network, open a web browser and log in to Genesys Cloud.
4. Click Admin.
5. Under Telephony, click Edges.
6. Click Menu > Digital and Telephony > Telephony > Edges.
7. Click Provision New Edge.

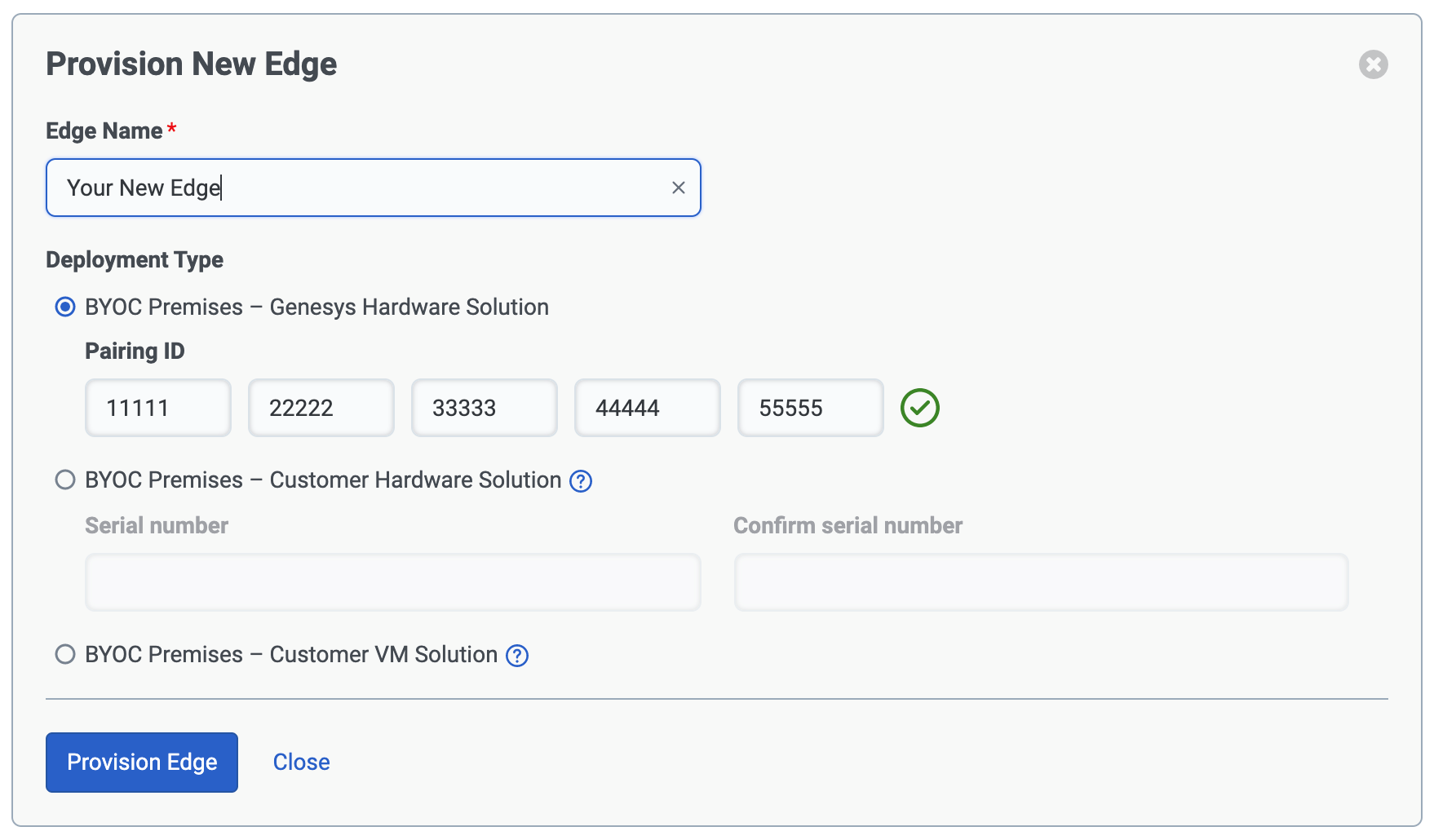

7. In the Provision New Edge screen, enter a name for the Edge in the Edge Name field.

8. Enter the Edge pairing ID into the Edge Pairing ID field. Your pairing ID appears on a sticker attached to the Setup Quick Reference Guide instruction sheet. To locate this information, look for the Pairing ID serial number printed below the bar code.
   Note: The Managed By option is unavailable in most situations.


9. Click Provision Edge.

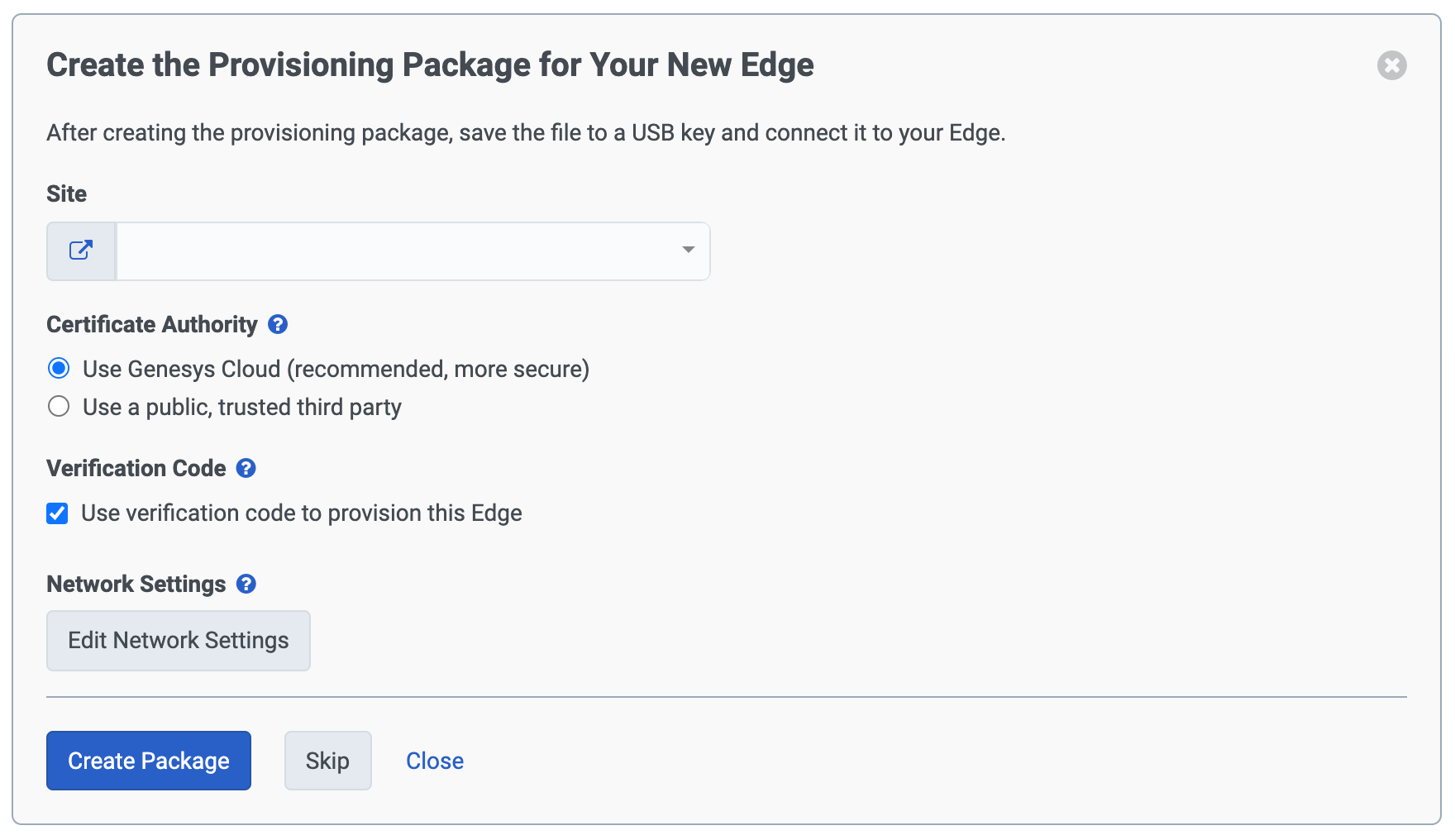

10. When you see the Create the Provisioning Package screen, use the Site drop-down to select the site location for the Edge.

12. Choose a Certificate Authority. (Use Genesys Cloud unless you contracted with a third-party certificate authority.)
13. Click the Use verification code to provision this Edge check box.

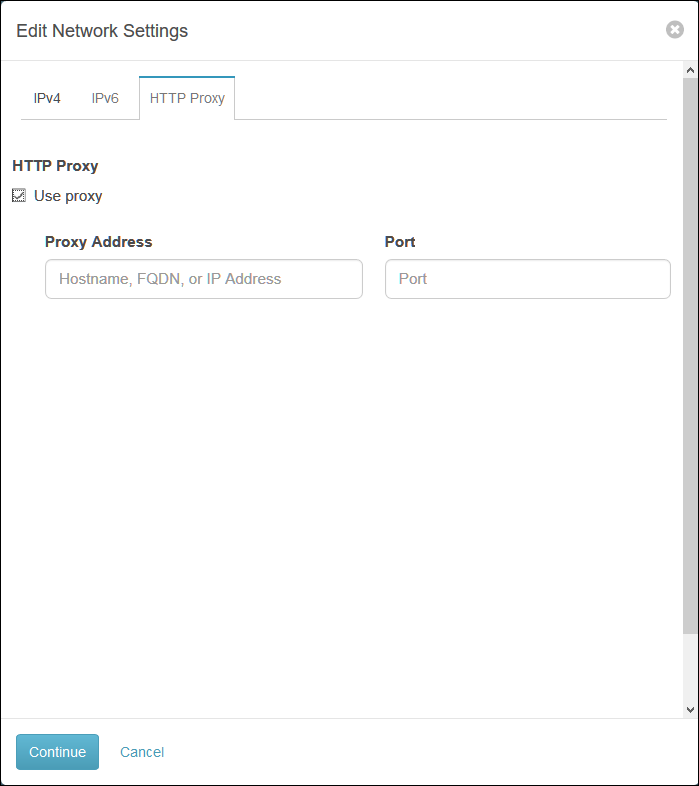

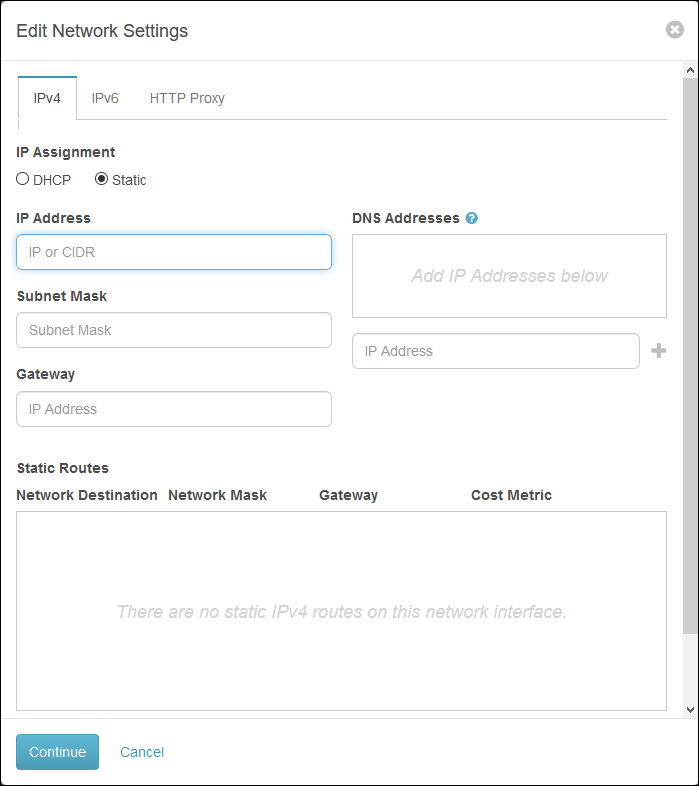

14. Click Edit Network Settings to specify your network configuration or to set up a proxy configuration.

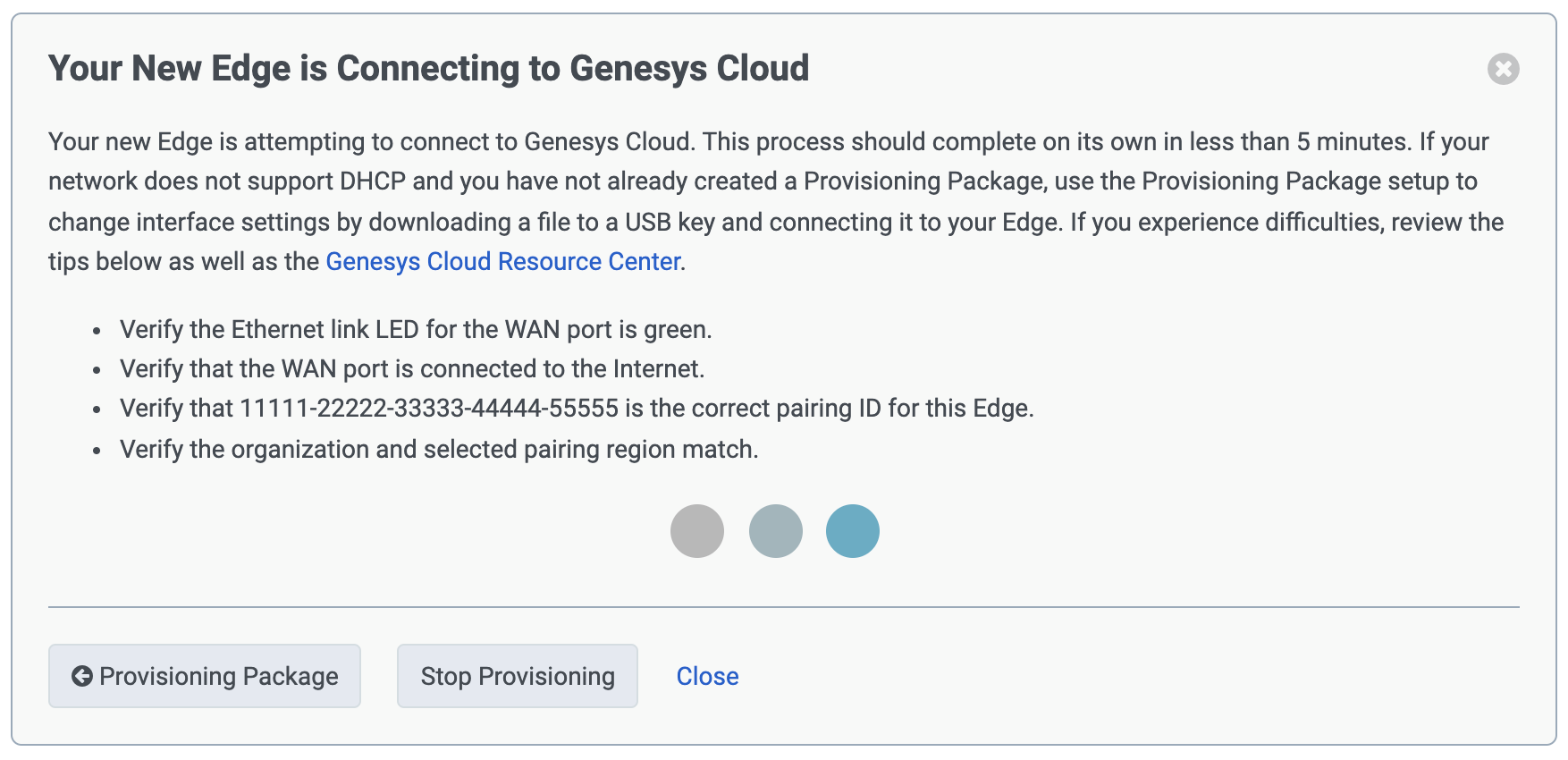

15. Click Create Package. A screen appears to inform you that your Edge is connecting to Genesys Cloud and prompts you to verify your settings.
16. When the provisioning package is ready, plug the USB flash drive into the USB port on your PC.
17. Locate the provisioning package, which is saved as a .zip file and named after the pairing ID, in the Downloads folder on your PC.
    Note: If you download multiple copies of the file, remove the appended number at the end of the file to revert to the original file name. For example, change 123.zip(2) back to the original 123.zip.
18. Copy the provisioning package .zip file from your PC drive onto the USB flash drive. Do NOT extract the .zip file!
19. Eject the USB flash drive from your PC.
20. Plug the USB flash drive into the USB port on the Edge after the system is up and running.
    Note: On the Edge Standard v3, the iLO Service Port and the USB 3.0 port are right next to each other. Make sure that you plug the USB flash drive into the correct port. (The USB port is on the right and the iLO port is on the left.) See Genesys Cloud Edge Standard v3 Product Information Sheet.

21. Wait for the Edge to locate the provisioning package and apply the settings.

    Note: Edge provisioning completes automatically, but the process can take several minutes.

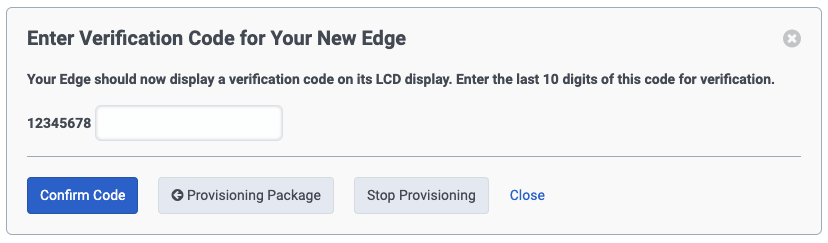

22. When the Enter Verification Code prompt appears, remove the USB flash drive from your Edge and plug it back into the PC.

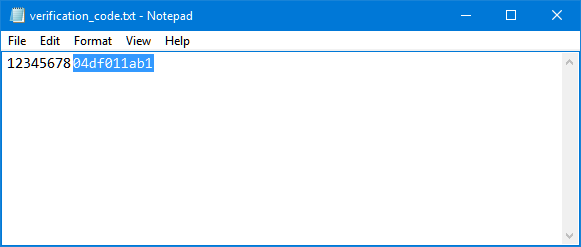

23. Launch Notepad and open the verification_code.txt file on USB flash drive.
24. Copy the last 10 digits of the verification code and then paste them into the text box.

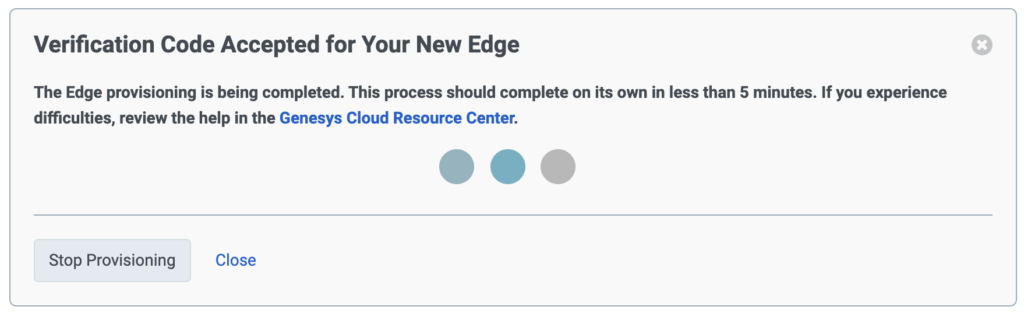

25. Click Confirm Code and wait for  the system to verify the code.
26. When the Ready to Configure prompt appears, click Configure Edge.
