Navigate the historical shrinkage view

Series: Historical shrinkage

Previous suggested step: Access the historical shrinkage view

The view displays the data for a management unitor work team based on your date range and granularity selection. You can view a graphical representation of the scheduled and actual shrinkage details for shrinkage over time and aggregated shrinkage.

Shrinkage Over TimeClick to expand

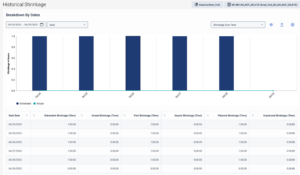

When you select Shrinkage Over Time, you can view the bars that display information based on the granularity that you select. Click the image to enlarge.

The table below the graph displays the data that you see in the graphs. You can sort the columns; however, if all zeros exist in any column, sorting does not occur. Click the preset option to view data for a select day. If no data exists, then a blank table appears.

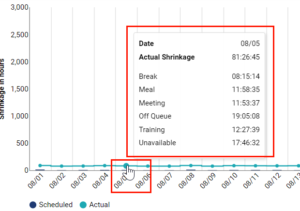

When you hover over the bar or date in the line in the graph, you can view the shrinkage over time details for scheduled and actual shrinkage. Click the image to enlarge.

When you click any of the bars or dots in the line of the graph, you can view a more detailed view of the breakdown data by activity for the particular day or week based on the granularity that you select. You can toggle forward and backward to move between days and view the corresponding data. For more information on configuring activity codes, see Configure activity codes. Click the image to enlarge.

Aggregated ShrinkageClick to expand

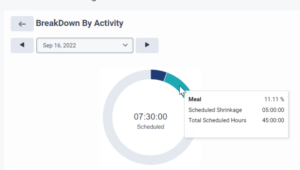

When you select Aggregated Shrinkage, you can view the aggregated information for the selected date range. The table below the donut chart displays the shrinkage information based on the activity category. Click the available list for each activity category to view additional information. When you hover over the donut, you can view the aggregated shrinkage details for scheduled and actual shrinkage. Click the image to enlarge.

To navigate to this view from the Shrinkage Over Time view, click a bar or dot in the graph.

The following sections explain the fields and corresponding descriptions on the Historical Shrinkage view and the fields in the table that follows the graphs.

Fields in the Historical Shrinkage viewClick to expand

The following table lists the fields and its corresponding descriptions on the Historical Shrinkage view.

Area	Description

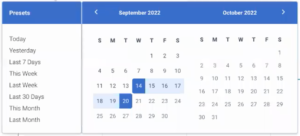

Date picker	Select the required date range. By default, shrinkage data for the last seven days appears. You can choose the required date from this selection. Click the image to enlarge.
Data granularity picker	View the data on two granularity levels. Daily – displays the shrinkage bars for each day within the date range that you select. Weekly – displays the shrinkage bars for the week within the date range that you select.
Shrinkage type	Select the shrinkage type based on the corresponding data for scheduled and actual shrinkage. The data displays with legends indicating the activity and the time spent alongside every category. Click anywhere in the graph to view the data. Toggle to the required day by clicking the front and back arrows or select the required date by clicking the list and view corresponding shrinkage information. The shrinkage types available for selection are: Shrinkage over time: In this view, you can see data in the form of a bar graph, which displays the scheduled and actual shrinkage over time. Aggregated shrinkage: In this view, you can see data in the form of donuts, which displays the scheduled and actual cumulative shrinkage for the selected period.
Switch to breakdown view	View the day view donut representation. This icon appears only to support key events on the graph. View the data for the day and can click the back arrow available next to the Breakdown by Activity header to go back to the breakdown by dates page. This icon appears when you select the Shrinkage Over Time option.
Export data	Export one of the following views: General view. View the exported view of the data for the selected period in the excel sheet. Aggregated shrinkage view. Select the aggregated shrinkage view and click this icon to view the aggregated shrinkage data for the selected period in the excel sheet. Shrinkage over time view. Select the shrinkage over time option and then click any bar to export the data for any particular day. The data displayed in this view and in the exported spreadsheet are the same.
Settings	Change the unit of measure displayed on the charts and tables. You can also compare the data available. Click this icon to view the available options. Click the image to enlarge. Units. Use this field to switch the values displayed in the charts and tables between time and percentage. If you select Time, then the entire view displays in terms of hours. If you select Percentage, then the entire view displays in terms of percentage. The values on the tooltip, however, remains unchanged. Compare. Use this field to compare scheduled/actual and planned/unplanned data. You can select the required option for comparison. This field is available only when you select the Shrinkage Over Time option. When you select the Aggregated Shrinkage option, this field disappears. You can view the information selected in the bar chart and also in the table below the chart.

Fields below Shrinkage view graphClick to expand

The following table lists the fields and its corresponding descriptions in the table that displays below the Shrinkage graph. The data that displays in each column is for activities that are configured as shrinkage activities.

Field	Description
Start Date	Displays the date corresponding to which the shrinkage information is displayed in the other columns.
Scheduled Shrinkage (Time)	Shrinkage duration as per the scheduled activity.
Actual Shrinkage (Time)	Shrinkage duration as per the present activity.
Paid Shrinkage (Time)	Scheduled shrinkage duration configured and paid.
Unpaid Shrinkage (Time)	Scheduled shrinkage duration, which is configured and unpaid.
Planned Shrinkage (Time)	Scheduled shrinkage duration, which is configured and planned.
Unplanned Shrinkage (Time)	Scheduled shrinkage duration, which is configured and unplanned.

For information about checking shrinkage calculation logic, see Historical shrinkage overview. For information about activity configuration of full day time off requests for planned/unplanned and paid/unpaid, see Configure activity codes.
